PERFORMANCE RANGE:
- Flow rate up to 135m3/h
- Head up to 88m
OPERATING LIMITS
- Fluid temperature up to 60℃
- Maximum ambient temperature 40℃
STRUCTURAL CHARACTERISTICS
- Pump body: cast iron
- Pump body cover: cast iron
- Impeller: cast iron
- Shaft: stainless steel
- Mechanical seal : SIC to hard alloy
- Protection class: IP44
- Insulation class: B
- Local bearing or NSK bearing.
| MHM32-200/40 | 5.5 HP 3PH |
| MHM32-250/55 | 7.5 HP 3PH |
| MHM40-200/75 | 10 HP 3PH |
| MHM50-200/110 or MHM50-200/110 | 15 HP 3PH |
| MHM65-160/150 | 20 HP 3PH |
| MHM50-250A | 25 HP 3PH |
| MHM65-250 | 30 HP 3PH |

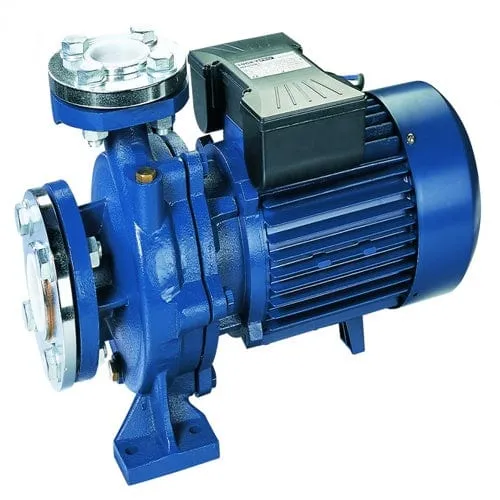

Elevate your water transfer solutions with the LuckyPro Three Phase Standardized Centrifugal Pump. Choose from a range of powerful options, including 5.5HP, 7.5HP, 10HP, 15HP, 20HP, 25HP, and 30HP pumps, designed to provide efficient and high-performance water transfer. These standardized pumps are ideal for a wide range of applications, ensuring reliable and robust operation. Whether you need them for industrial, commercial, or municipal use, the Three Phase Standardized Centrifugal Pump series offers dependable and powerful water pumping.
