Bilge pumps are designed to remove water that reaches the bilge. Non-automatic pumps require a device to control the pump, engaging the pump when water enters the bilge, and then disengaging the pump when water has been removed. Xylem’s Rule brand offers a portfolio of bilge pump float switches that are designed to suit all boat requirements and pumps from 360 GPH, up to 4000 GPH.

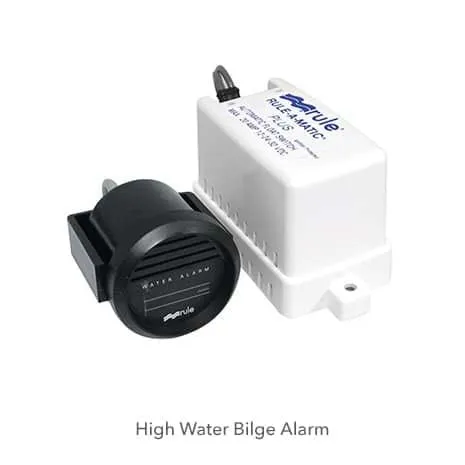

The Rule High Water Bilge Alarm consists of a non-mercury bilge pump float switch and an in-dash gauge that features both a visual and an audible 85 db alarm. This unit allows an unmanned compartment to be constantly monitored. For additional compartments, add additional switches. Complies with CFR 182.530 which requires a visual and audible alarm in each unmanned space on commercial vessels at least 26 ft. (7.9m) in length.
PRODUCT FEATURES
- Fits multiple pump sizes
- Removable base for easy cleaning and servicing
- Interchangeable mounting bases for replacement or upgrade (models 35A & 37A)
- Marine-grade blocked wire
| MODEL NAME | HIGH WATER BILGE ALARM | HIGH WATER BILGE ALARM | HIGH WATER BILGE ALARM |
|---|---|---|---|
| MODEL NUMBER | 33ALA | 32ALA | 31ALA |
| VOLTS (DC) | 12 | 24 | 32 |
| MAX AMPS (DC) | 20A | 10A | 6.5A |
| WIRE GAUGE | 14 AWG | 14 AWG | 14 AWG |
| SIZE (H x L x W) inches (mm) | 2-1/4 x 5 x 2 (57 x 127 x 51) | 2-1/4 x 5 x 2 (57 x 127 x 51) | 2-1/4 x 5 x 2 (57 x 127 x 51) |
| IN-LINE FUSE HOLDER INCLUDED | no | no | no |
| SHIELD INCLUDED | yes | yes | yes |
