Walbro/TI Automotive Hellcat Fuel Pump 525LPH High Pressure E85 Fuel Pump

Caution: Extremely High Counterfeit Rate - Buy from an Authorized Dealer Only

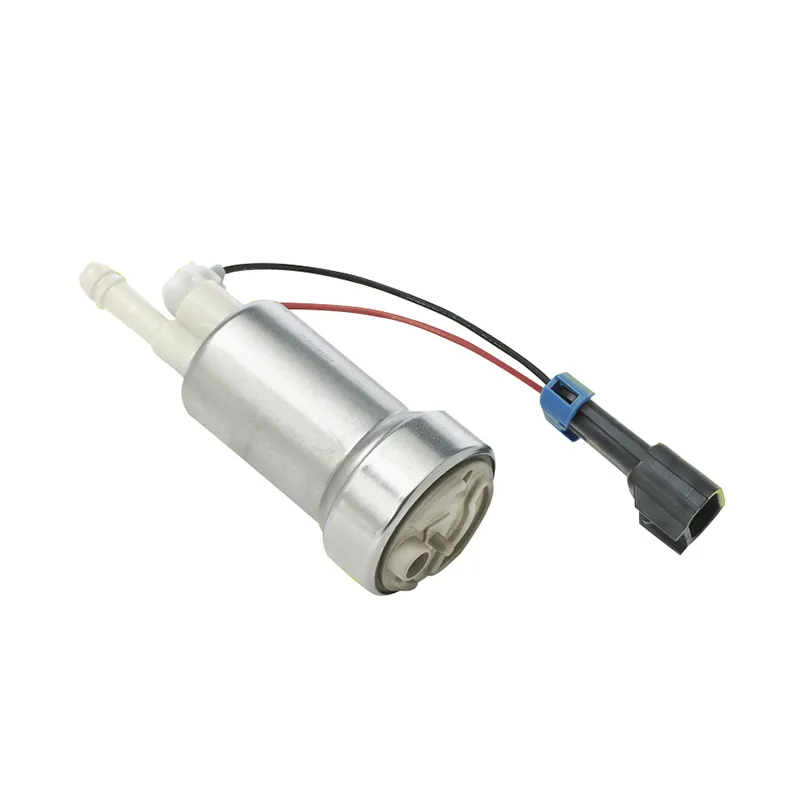

The F90000285 Hellcat 525LPH Fuel Pump is the highest output in-tank fuel pump on the market.

Enjoy the highest output on today’s market with our new DCSS 39/50 fuel pump. Able to support an aggressive 700 horsepower, with a super charger, this innovative dual pumping channel design delivers maximum pressure with superior fuel flow. Operating in both gas and E85, this fuel pump comes with a check valve to avoid system leak-down and extended cranking at start-up. This superior design results in improved hot fuel flow, as well as minimal noise, increasing efficiency by 20% over conventional pumps, delivering unparalelled performance

The innovative design of the DCSS 39/50 features a single impeller with two parallel rows of turbine blades. Designed for high performance engines exceeding 500hp.

Features

• Highest flow in-tank brushed fuel pump offering from TI Automotive
• Featuring award winning DCSS technology
• E85 compatible
• Internal check valve — prevent fuel system pressure bleed down — prevent extended cranks
• High pressure relief setting — support supercharger and turbo applications
• Capable of supporting 900 HP at 60PSI naturally aspirated applications
• Flush mountable to existing hanger with installation kit 400-1168

Specifications

Fuel: GAS & E85
Horsepower: 900 at 60PSI, naturally aspirated applications
Over All Pump Length: 131mm
Main Housing Diameter: 39mm
Lower Housing Diameter: 50mm
Fuel Inlet Diameter: 11mm OD
Fuel Outlet Diameter: 11mm OD
Flow Rate: 470lph @ 40psi (120 gph)
Test Voltage: 13.5 Volts
